Materials
Tight sleeve material: low smoke halogen-free polyolefin (PVC optional) Jacket material: low smoke halogen-free polyolefin (PVC optional) Jacket size: 0.9mm, 2.0mm, 3.0mm Reinforcement material: polyester yarn (indoor) FRP/steel wire (outdoor) Brake material: metal-zinc alloy non-metal-PE
Fiber core material: A1a multimode 50/125um
A1b multimode 62.5/125um
B1.1 single mode 8.0/125um
B1.3 single mode 8.0/125um
B1.1 single mode 9.0/125um
B1.3 single mode 9.0/125um
OM3 multimode 50/125um
OM4 multimode 50/125um
Product Features
Provide 1~2 cores
Each branch is numbered for easy installation, maintenance and management
100% factory pre-terminated and tested to ensure that its transmission can be provided according to demand ST, FC, SC interface implementation standards: YD/T926.3-2009
ANSI/TIA-568-C.3
ANSI/TIA/EIA-606-A
IEC 60603-7
TIA/EIA-604-5
TIA/EIA-604-10
IEC61754-7
IEC61754-20
Physical parameters
Jumper length: 100CM-50M
Fireproof grade: Meet UL94V-0
Operating temperature: -40℃ to 85℃
*Storage temperature: -25℃ to 70℃
Pulling tensile strength: 400N (12 cores) 600N (24 cores)
Minimum bending radius (installation): 20 times the cable diameter
Minimum bending radius (stationary): 10 times the cable diameter
*LC Insertion loss: PC<0.3dB, UPC<0.3dB, APC<0.3dB
*SC Insertion loss: PC<0.3dB, UPC<0.3dB, APC<0.3dB
*ST Insertion loss: PC<0.3dB, UPC<0.3dB, APC<0.3dB
*FC Insertion loss: PC<0.3dB, UPC<0.3dB, APC<0.3dB
*LC Return loss: PC>45dB, UPC>50dB, APC>55dB
*SC Return loss: PC>45dB, UPC>50dB, APC>55dB
*ST Return loss: PC>45dB, UPC>50dB, APC>55dBm
*FC Return loss: PC>45dB, UPC>50dB, APC>55dB

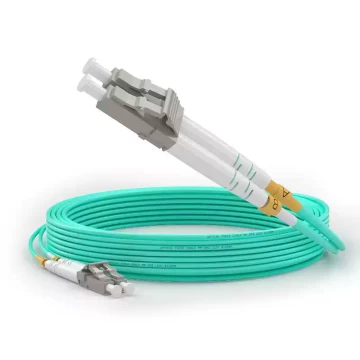

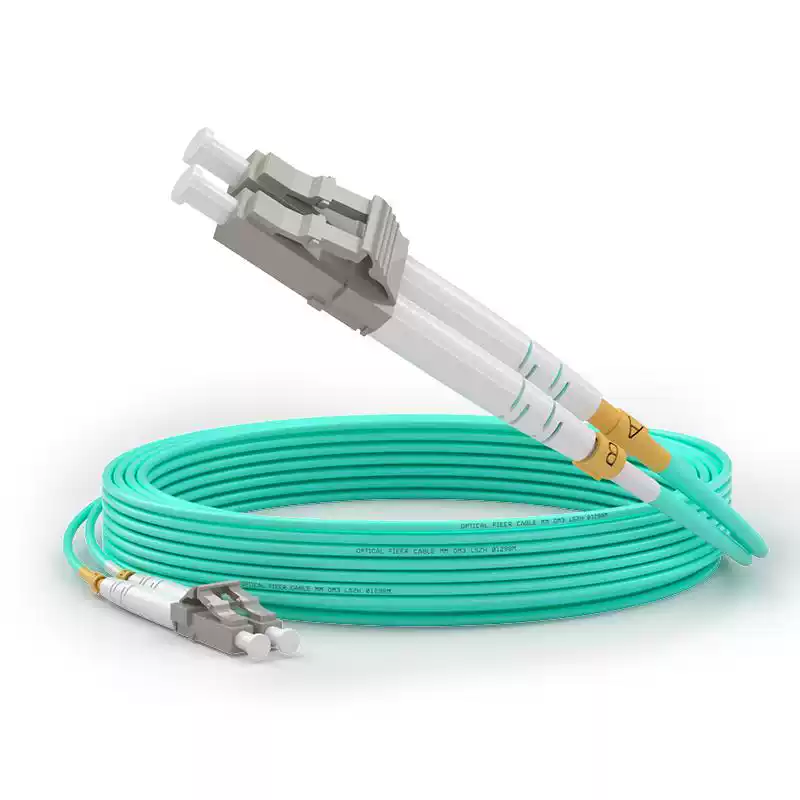

LC-LC 10G\40G\100G multimode OM4 telecom-grade dual-core room wiring optical fiber cable 10M LZSH low smoke zero halogen
1. Insertion loss is too high
Performance: Signal transmission attenuation exceeds the standard value (OM4 usually requires ≤0.3 dB/connection point).
Possible causes:
End face contamination (dust, oil stains).
End face scratches or wear.
The connector is not fully plugged in or the adapter is not aligned.
Solution:
Use fiber cleaning tools (such as dust-free cotton swabs, cleaning pens) to clean the end face.
Check whether the jumper end face is intact and replace it if necessary.
Make sure the plug is fully inserted into the adapter and hear a "click".
2. Return loss does not meet the standard
Performance: The reflected light signal is too strong, affecting the transmission quality.
Possible causes:
Poor end face polishing (such as the APC end face is not at an 8-degree angle).
The connector type does not match (such as mistakenly using UPC instead of APC).
Solution:
Confirm the jumper end face type (OM4 multimode is generally UPC, single mode may require APC).
Replace a jumper that meets the standard.
3. Fiber breakage or damage
Symptom: signal is completely interrupted or intermittently interrupted.
Possible causes:
The jumper is over-bent (exceeding the minimum bending radius, OM4 is usually ≥15mm).
External force squeeze or pull.
Solution:
Check whether the jumper has obvious bends or indentations, and replace the damaged jumper.
Avoid sharp bends when wiring, and use a cable manager to fix it.
4. Compatibility issues
Symptom: unstable connection with the device or module.
Possible causes:
Device port type does not match (such as LC interface mistakenly inserted into SC adapter).
Wavelength does not match (OM4 is suitable for 850nm/1300nm, if it is mistakenly used for single-mode 1310nm/1550nm, it will fail).
Solution:
Confirm the device interface type and wavelength requirements.
Use the correct jumper type (multimode OM4 vs. single-mode).
5. Dispersion or insufficient bandwidth
Symptom: High bit error rate at high-speed transmission (such as 40G/100G).
Possible causes:
The jumper length exceeds the effective bandwidth distance of OM4 (such as 100G BASE-SR4, the maximum is about 150m).
Mix different grades of optical fiber (such as OM3 and OM4).
Solution:
Ensure that the link length is within the OM4 specification range.
Avoid mixing optical fiber types and use OM4 throughout.
6. Loose or detached connector
Symptom: Intermittent signal.
Possible causes:
Damage to the LC connector buckle.
Aging of the adapter.
Solution:
Replace the jumper or adapter.
Choose an LC connector with a dust cover to protect the buckle.
7. Impact of environmental factors
Symptom: Performance deteriorates after long-term use.
Possible causes:
High temperature and humidity cause aging of the optical fiber coating.
Chemical corrosion (such as data center cleaners).
Solution:
Choose a patch cord that is corrosion-resistant and heat-resistant (such as an OFNR sheath).
Check the patch cord status regularly.
Maintenance recommendations
Regular cleaning: Use professional tools to clean the end face and avoid direct contact with your hands.
Proper storage: Keep the radius ≥5cm when coiling to avoid knots.
Test verification: Use an optical power meter or OTDR to check whether the loss meets the standard.
