Brocade 7810 Extension Switch Fast, reliable and secure data protection over distance

Under pressure to ensure valuable information is protected from disruptions and outages, while containing costs for equipment and long-distance connections? The Brocade^® 7810 Extension Switch is a modern replication connectivity solution that cost-effectively and quickly transports data over long distances between data centers. With powerful built-in technology to overcome the inherent challenges of latency and packet loss over distance, the Brocade 7810 dramatically speeds up replication performance to handle the unrelenting transfer of data between data centers.

Powerful: Move more data faster over distance with up to 10 Gb/s replication throughput and consolidate FC and IP replication workloads.

Reliable: Protect data from WAN disruptions and outages with Extension Trunking, Adaptive Rate Limiting, WAN Test Tool and Fabric Vision technology.

Secure: Secure data from threats over the WAN with unbreakable network encryption enabled without impacting performance, and simplify compliance to meet security regulations.

Features

Move more data faster over distance

Maximize replication throughput across optimized WAN links
Compress data without a WAN performance penalty
Consolidate FC and IP replication workloads

Protect data from WAN disruptions and outages

Avoid replication restarts with lossless failover
Maintain WAN performance during network disruptions
Pre-validate the WAN infrastructure to ensure a worry-free deployment
Automatically detect WAN anomalies with proactive monitoring

Secure data from threats over the WAN

Minimize threats with unbreakable network encryption
Encrypt data without impacting replication performance
Simplify compliance to meet security regulations

Product Details

Specification	Value
Lifecycle	Active
Certified Maximum	Single fabric: 56 domains, 7 hops; Multiprotocol routing fabric: 19 hops
Class of Service	Class 2, Class 3, Class F (inter-switch frames)
Ethernet Ports	6 ports of 1/10 GbE for LAN and WAN connectivity
Fibre Channel Performance	8.5 Gb/s line speed, full duplex; 14.025 Gb/s line speed, full duplex; 28.05 Gb/s line speed, full duplex; auto-sensing of 8, 16, and 32 Gb/s port speeds
Fibre Channel Ports	12 ports, 32 Gb/s, universal (E, F, M, D, and EX ports)
Port Types	F_Port, E_Port, EX_Port, (FCR E_Port), D_Port (Diagnostic), M_Port (Mirror), and self-discovery based on switch type (U_Port); VE_Port (FCIP and IP extension)
Scalability	Full fabric architecture with 239 switches maximum
Size (mm)	440(W) x 44(H) x 457(D)

Brocade 7810 Extension Switch Fast, reliable and secure data protection over distance

Features

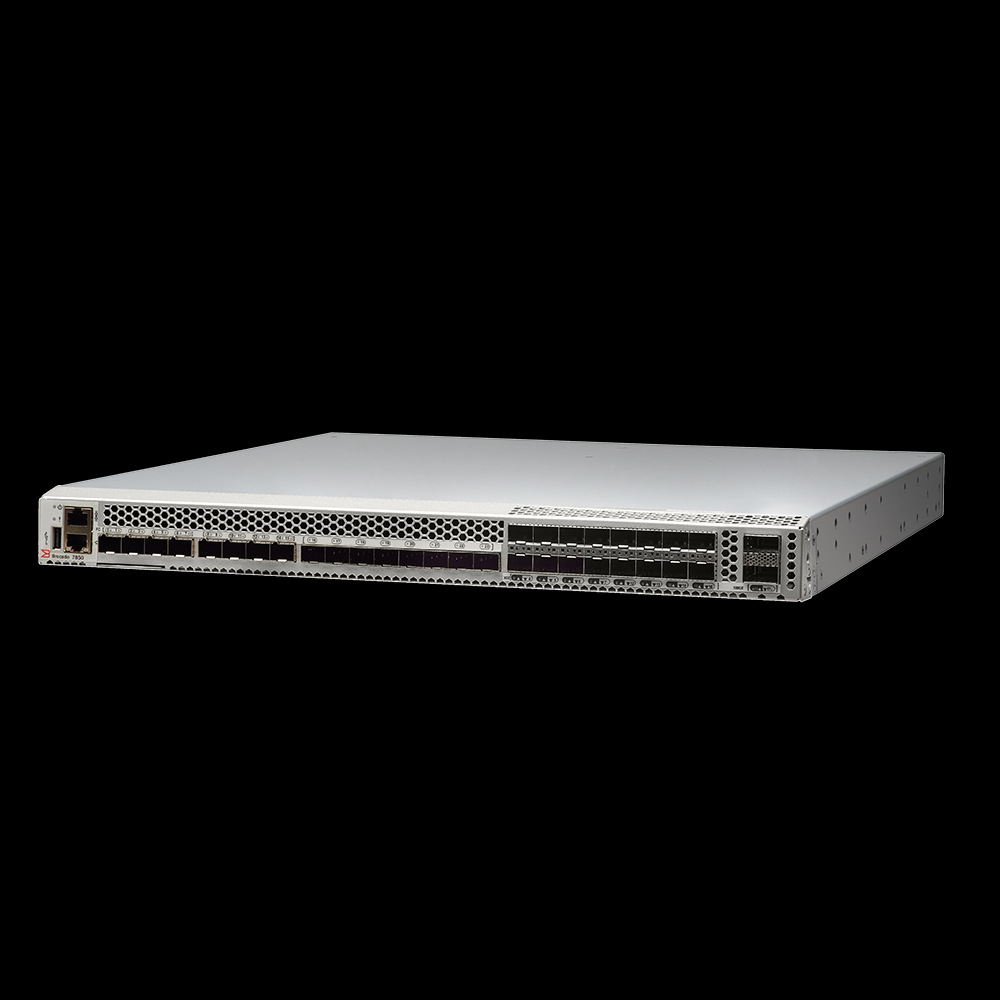

Brocade 7850 Extension Switch Securely move more data, faster over distance for continuous data protection
